Pipeline & Process Piping

BLACK DIAMOND

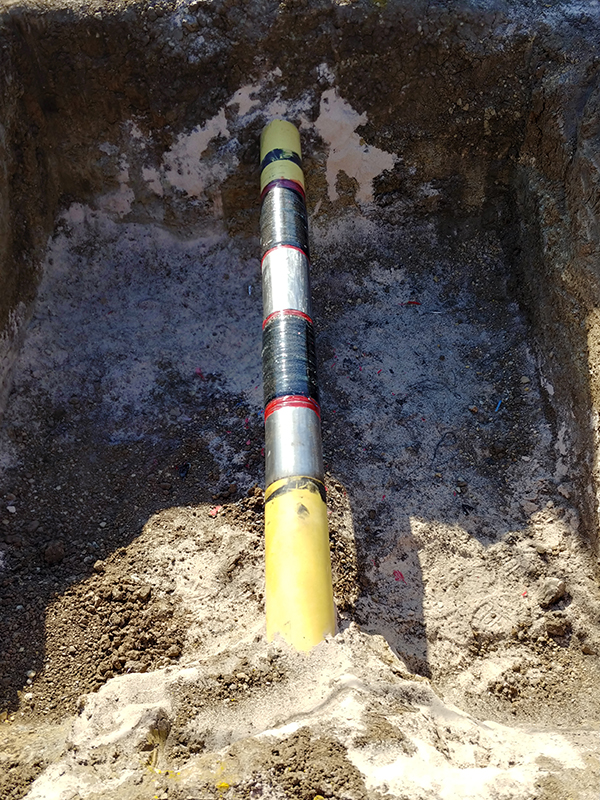

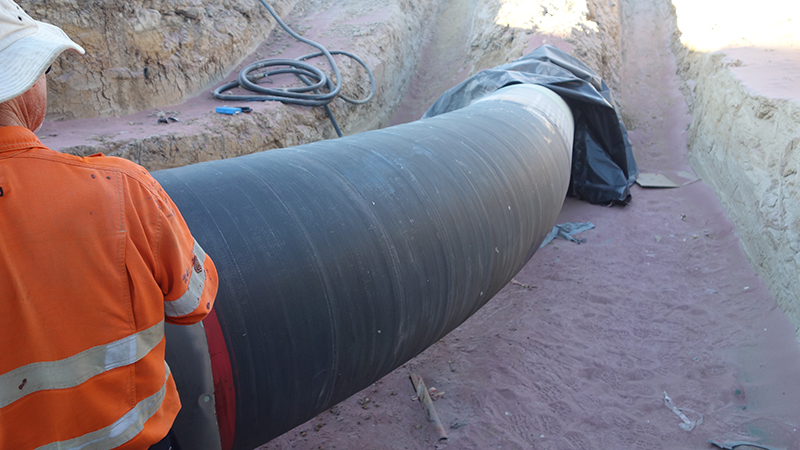

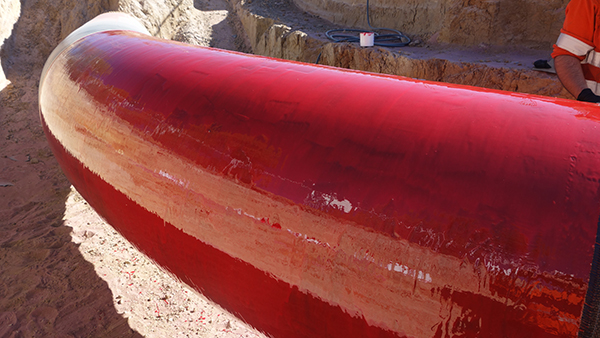

Clock Spring BlackDiamond® is ideal for transmission pipeline integrity repairs involving field bends, deformation, metal loss, and crack-like anomalies. It is an engineered, wet applied repair system featuring proprietary carbon fiber cloth applied with a two-part epoxy and a high modulus filler material. It is available in multiple kit sizes for any diameter pipe, in any configuration. Engineered repairs follow ISO or ASME guidelines.

Repairs can be used as DOT accepted permanent repairs for integrity digs, with proven negligible creep ensuring a long service life with carbon fiber technology. BlackDiamond can be installed with minimal disruption to the operation of a pipe, without the use of hot work, heavy machinery, or shut down to operations.

FEATURES & BENEFITS INCLUDED:
  • 50-year DOT accepted repair system for transmission pipelines.
  • ASME PCC-2 and ISO 24817 compliant.
  • Repair kits will restore pipelines to MAOP on up to 80 percent wall loss, mechanical damage, mill defects, and axial flaws.
  • Removes need for pressure reduction or pipeline shutdown.
  • Zero performance loss validation on 10 year test program.
  • Excellent adhesion to virtually any substrate.
  • Can be applied on field bends and girth welds.
  • Used in all environments, in over 60 countries.
  • Can be used in road and river crossings, and air to soil transitions.
  • High Temperature and Subsea systems available.
  • BlackDiamond kits are installed quickly and efficiently by certified installers.
  • Remote training classes available for Operator Qualification.
  • Simple marking band system makes repairs visible to in-line inspections tools.
  • Robust low profile repairs with high strength and low creep.
  • Easy to install and cure.

ATLAS

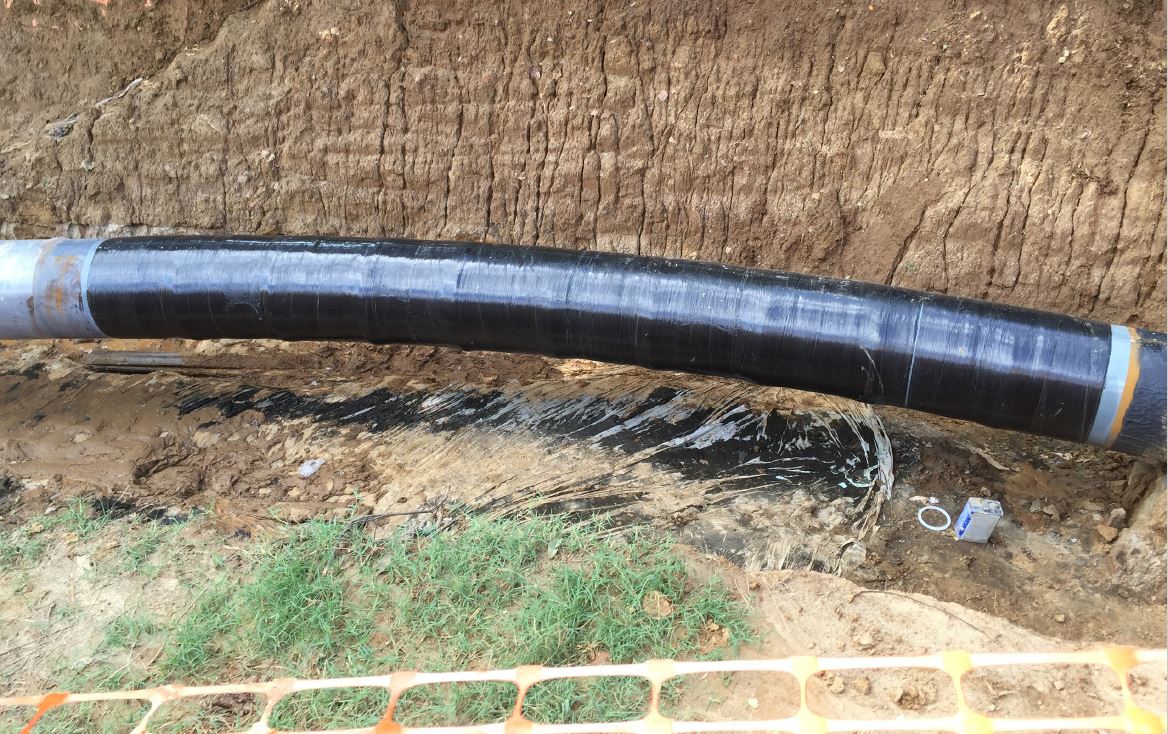

Atlas™ is the most tested carbon fiber composite solution for the permanent repair and rehabilitation of pipelines and piping structures. Atlas™ is highly engineered to permanently restore the original strength of pipelines suffering from both common and complex pipeline anomalies while maintaining strict compliance with corresponding regulations, codes and standards.

Atlas™ HT is the most tested, high temperature, carbon fiber composite solution for the permanent repair and rehabilitation of pipelines and piping structures operating at high temperatures up to 450°F (232°C). Atlas™ HT is engineered to restore the original strength of pipelines suffering from both common and complex pipeline anomalies while maintaining strict compliance with corresponding regulations, codes, and standards.

Applications:
  • External corrosion and pitting
  • Dents, gouges, and scratches
  • Weld defects and other manufacturing flaws
  • Wrinkle Bends/Deformations
  • Cracks (conditional cases)
  • Atlas HT for High Temperature Pipelines
Benefits:
  • Permanent repair with minimal disruption to pipeline operation during installation and top coating
  • Flexible repair system can be installed on complex deformations and geometries and in areas of low clearance
  • Installed and inspected with cost-effective field labor
  • Reduce time and cost in the ditch, repairing more anomalies in less time
  • Can be installed over non-injurious hard spots and laminations without safety risk, reducing the total repair length, cost and time required compared to steel sleeves

DIAMONDWRAP

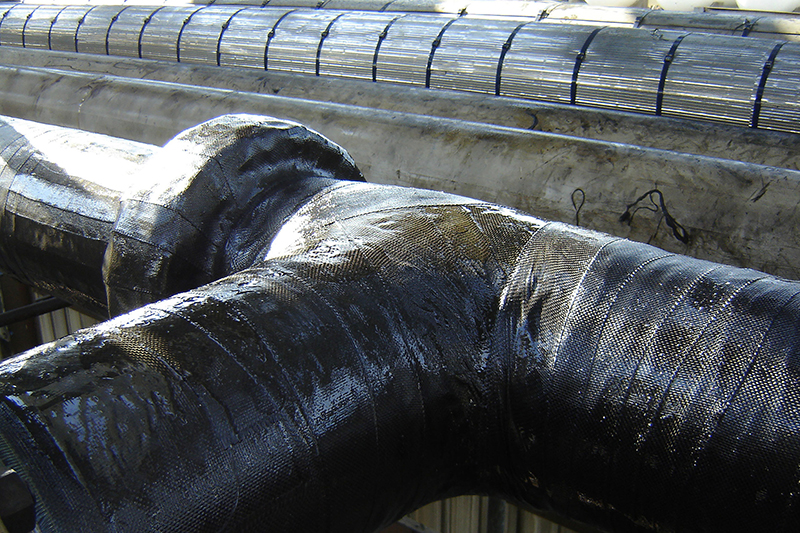

DiamondWrap® is an engineered, field-saturated repair system made of proprietary carbon fiber cloth applied with a two-part epoxy and a high-modulus filler material. It functions as a pressure-containing repair to seal leaks and as a reinforcing repair to restore original pipe strength in both the hoop and axial directions.

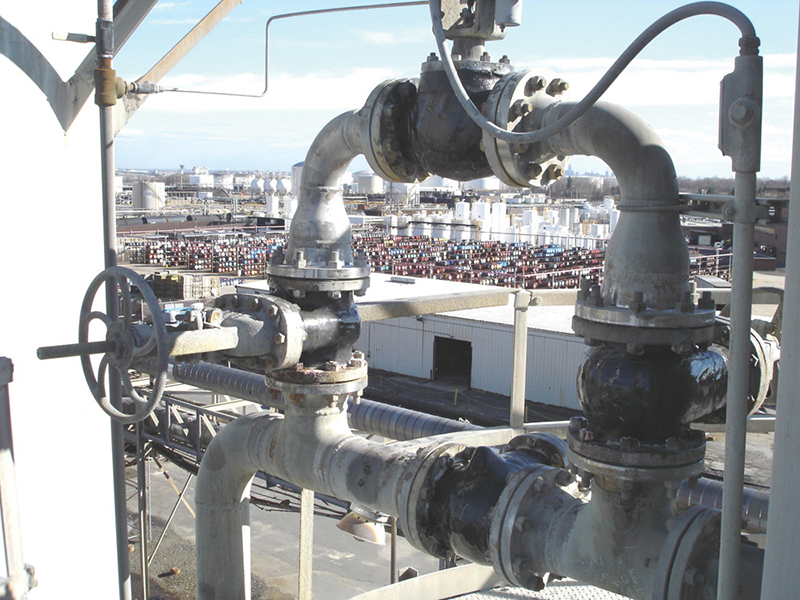

DiamondWrap® is used regularly in plants, refineries, tank farms, terminals, and offshore locations around the globe and is ideal or complicated geometry, such as tees, flanges, and varying diameter pipe. It is available in multiple kit sizes for any temperature and diameter pipe and can be installed with minimal disruption to operations.

DiamondWrap® includes:
  • DiamondWrap – operates up to 200oF (93oC)
  • DiamondWrap MT – operates up to 313oF (156oC)
  • DiamondWrap HT – operates up to 430oF (221oC)
  • DiamondWrap UHT (pre-impregnated) – operates up to 715oF (400oC)
Applications:
  • Cooling water lines
  • Flare lines
  • Blow down lines
  • Chemical processing lines
  • Oil and gas risers
  • Steel pipe
  • Stack towers
  • Steam piping
  • Underwater pipeline
  • Storage Tanks and Vessels
Benefits:
  • Eliminates unplanned down time for high consequence piping
  • Extends the life of aging and corroding assets
  • No pipe cutting or welding
  • Minimal creep ensures a long service life
  • No VOCs
  • Prevents future external corrosion

THERMOWRAP

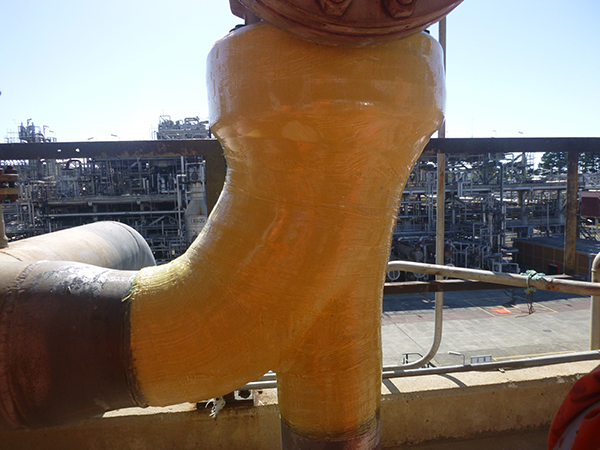

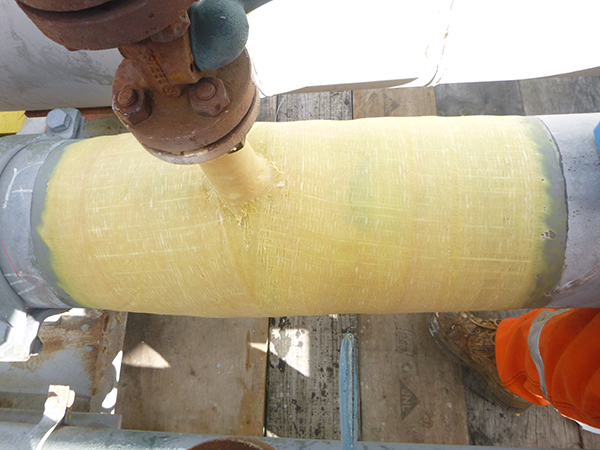

ThermoWrap® is an engineered, field-saturated repair system made of proprietary fiberglass cloth applied with a two-part epoxy and a high-modulus filler material. ThermoWrap® is used globally in plants, refineries, tank farms, terminals and on offshore assets as a pressure-containing repair to seal leaks and as a reinforcing repair to restore the strength of a pipe in the axial and circumferential directions. It is ideal for repairs involving complicated geometry, including tees, flanges, and varying diameter pipe.

ThermoWrap® is available in multiple kit sizes for any temperature and diameter pipe and can be installed with minimal disruption to operations. It repairs through-wall defects and installs easily in challenging environments where there is complicated pipe architecture.

ThermoWrap® includes:
  • ThermoWrap – operates up to 200oF (93oC)
  • ThermoWrap MT – operates up to 313oF (156oC)
  • ThermoWrap HT – operates up to 430oF (221oC)
  • ThermoWrap 500 (pre-impregnated) – operates up to 500oF (260oC)
Applications:
  • Cooling water lines
  • Flare lines
  • Blow down lines
  • Chemical processing lines
  • Oil and gas risers
  • Steel pipe
  • Stack towers
  • Steam piping
  • Underwater pipeline
  • Storage Tanks and Vessels
Benefits:
  • Eliminates unplanned down time for high-consequence piping
  • Extends the life of aging and corroding assets
  • No pipe cutting or welding
  • Minimal creep ensures a long service life
  • No VOCs
  • Prevents future external corrosion

VIPERSKIN

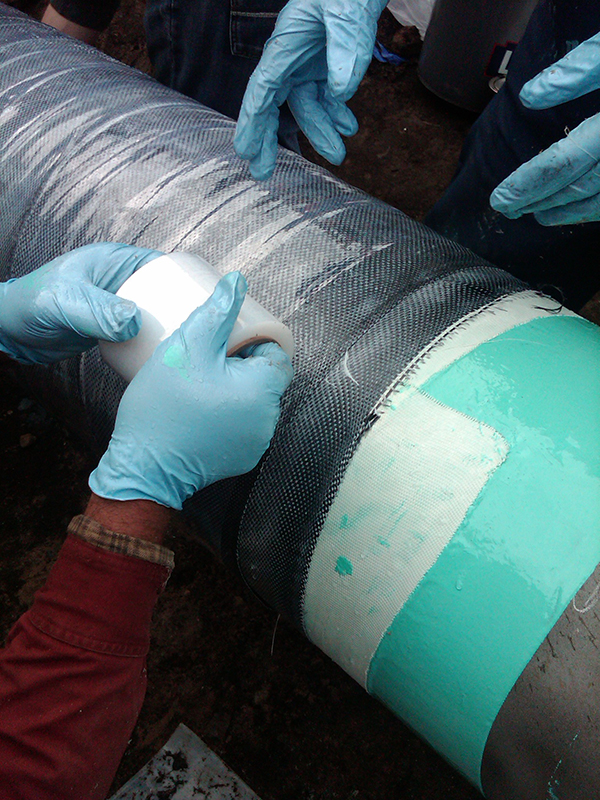

ViperSkin™ is the first bi-axial, hybrid carbon and glass fiber, pre-saturated system to blend the unsurpassed strength and stillness of carbon with the ease and use of a moisture-cured, factory-saturated polyurethane. The pre-saturated system ensures appropriate fiber-to-resin content ratios to deliver reliable performance in restoring pipeline integrity on lines with complex geometry.

Features:
  • Moisture-cured polyurethane resin
  • Factory-saturated fiber
  • Full engineering consultation and support
  • Non-shielding

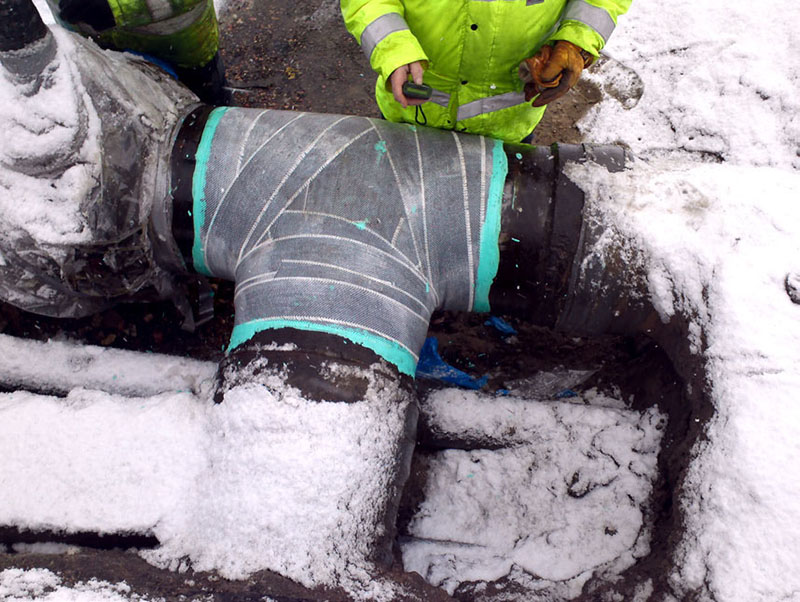

  • Can be applied to any geometry including, but not limited to elbows, tees, and flanges
  • Design conforms to ASME PCC-2, ASME B31, ISO 24817, DOT, API, and CSA Z662 standards for nonmetallic reinforcing solutions
Applications:
  • Transmission and distribution pipelines
  • Oil and gas risers and subsea structures
  • Process piping: chemicals, oil, gases, water, and steam
  • Mechanical dents and defects
  • Girth welds on vessels and pipelines
  • Straight pipelines, elbows, tees, and flanges
Benefits:
  • Factory saturation of moisture-cured polyurethane resin reduces composite field preparation time by more than 50%
  • Factory saturation ensures the right fiber-to resin ratio with constant strength and mechanical properties
  • Easy application in any conditions, including damp or sweating pipes and in submerged environments
  • No heating or post-curing
  • Suitable for irregular shapes and geometries
  • Can be used on lines of any diameter
